Tenshock EDF
2230-11T-1840KV
mit Micro Edition 5:1N 4plus
288,00 €   Stück
inkl. MwSt, zzgl. Versand

Lieferzeit: mehr als 4 Wochen* mehr als 4 Wochen*

Menge Stück

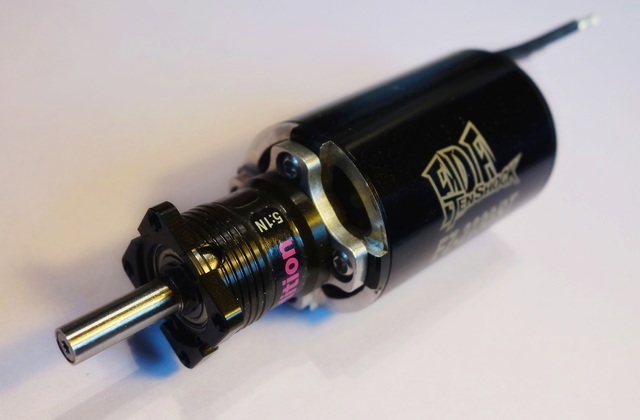

Tenshock EDF 2230-11T-1840KV + Micro Edition 5:1N 4plus
Mit Flat und Inject (hohlgebohrte Welle = nachfetten ohne Spinnerabbau)

Sehr leistungsfähiger, kompakter 6-Pol Innenläufer Antrieb,
besonders geeignet für Segelflugmodell.


Daten:
Gewicht: 267g
Polzahl: 6
Ø: 36,0mm
Länge: 80mm ohne Welle + Welle 18mm
Welle Ø: 6,0 mm
Lochkreis: 25mm, 4xM3
Lipo: 4-8
rpm/V: 381 gemessen mit Timing 12°
Strom max.: 64 Amp.
max. Leistung: an 14,8V 900 Watt, an 18,5V 1110 Watt, an 22,2V 1330 Watt, an 30V 1800W
Timing: 10-12°
Taktfrequenz: 8-12khz

Von unserem Prüfstand:

Bestes ETA bei 14,8 Volt, 24-30 Amp. 83,0%
Bestes ETA bei 18,5 Volt, 26-32 Amp. 83,5%
Bestes ETA bei 22,2 Volt, 26-36 Amp. 83,9%
Bestes ETA bei 30,0 Volt, 30-38 Amp. 83,9%
Idealer Einsatzbereich 35-60 Amp.

Einschaltzeiten:
Seglertypisch, unter Berücksichtigung von Aussentemperatur und wirksamer Kühlung.

Antriebsdaten im Stand:

11,1V - 22x14 GM CFK M36, 3500 rpm, 48 Amp. 531 Watt, VPitch 75 km/h, Eta 77,6%

14,8V - 17x13 GM CFK Scale M36, 5059 rpm, 34 Amp. 509 Watt, VPitch 100 km/h, Eta 82,4%
14,8V - 18x13 GM CFK VV38° M38, 4919 rpm, 43 Amp. 630 Watt, VPitch 97 km/h, Eta 81,1%
14,8V - 18x13 GM CFK Scale VV° M38, 4919 rpm, 43 Amp. 630 Watt, VPitch 97 km/h, Eta 81,1%
14,8V - 20x13 GM CFK Scale M37, 4723 rpm, 54 Amp. 803 Watt, VPitch 94 km/h, Eta 78,8%

18,5V -16x10 GM CFK Scale VV° M38, 6305 rpm, 40 Amp. 741 Watt, VPitch 96 km/h, Eta 82,7%
18,5V -16x13 GM CFK Scale VV° M38, 5990 rpm, 57 Amp. 1056 Watt, VPitch 119 km/h, Eta 79,9%
18,5V -17x13 GM CFK Scale VV° M38, 5926 rpm, 61 Amp. 1122 Watt, VPitch 117 km/h, Eta 79,3%
18,5V -18x13 GM CFK VV° M38, 5923 rpm, 61 Amp. 1125 Watt, VPitch 117 km/h, Eta 79,2%
18,5V -18x13 GM CFK Scale VV° M38, 5781 rpm, 69 Amp. 1274 Watt, VPitch 115 km/h, Eta 77,7%
18,5V -19x10 GM CFK Scale VV° M38, 6012 rpm, 56 Amp. 1034 Watt, VPitch 92 km/h, Eta 80,1%

22,2V -16x10 GM CFK Scale VV° M38, 7365 rpm, 54 Amp. 1198 Watt, VPitch 112 km/h, Eta 81,5%
22,2V -16x13 GM CFK Scale VV° M38, 6939 rpm, 76 Amp. 1686 Watt, VPitch 137 km/h, Eta 77,8%
22,2V -17x10 GM CFK VV° M38, 7365 rpm, 54 Amp. 1198 Watt, VPitch 112 km/h, Eta 81,5%
22,2V -17x13 GM CFK VV° M38, 7078 rpm, 69 Amp. 1524 Watt, VPitch 140 km/h, Eta 79,1%
22,2V -18x10 GM CFK Scale M37, 7218 rpm, 61 Amp. 1364 Watt, VPitch 110 km/h, Eta 80,3%

30V -14x10 RF CFK M36, 10091 rpm, 56 Amp. 1688 Watt, VPitch 154 km/h, Eta 82,5%


HINWEIS: Schubwerte gerechnet.

Optionales Zubehör:
• 4-plus Hochleistungsfett– Link.
• Montageschlüssel 17-2mm für Micro EDITION Flansche– Link.
• Passende Spanten– Link.
